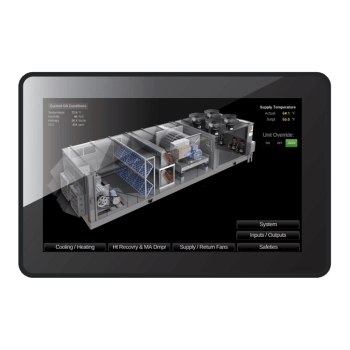

OptiCORE SYST1-5 Display
The OptiCORE SYST1-5 display is an integrated component of a Building Automation System. It features an illuminated, 5” color pixel touchscreen display and connects directly to a network of Opticore or MS/TP controllers. Designed for wall mounting, it provides building occupants, facility managers, and installers a powerful user interface for managing all of the equipment in a building.
OptiCORE SYST1-5 Display
Application Features
- Auto-discovery of BACnet controllers on MS/TP network
- Supports custom “system-level” screens
- Allows user to browse to equipment and display custom equipment screens
- Individual equipment and Group scheduling
- Historical trending
- Draw occupants attention to important information with conditional alarming, color changes, and graphics
- Features a high resolution, capacitive multi-touch screen
- Support for 13 international languages and characters
- Can serve as a technician’s HVAC equipment interface
- Multi-level password protection for security
- Access virtually any point in the controller
- View and edit BACnet time schedules
- View all alarms in controller
- Change setpoints easily
Hardware Features
- 5” Color Touchscreen
- Rugged, industrial grade display including a wide temperature range and vibration resistance
- Fanless cooling system and ultra- low power consumption
- On-board temperature and humidity sensor
- Wall-mounted
Programming Features
- Easily programmable using ViewBuilder WYSIWYG editor, which includes a library of interactive controls
- Supports standard Equipment Touch files
- Support for graphics
- USB-C port for local device updates
- Supports screen capture to USB flash drive
- Built-in PDF viewer
