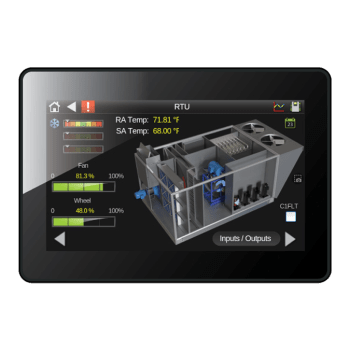

OptiCORE EQT1-5 Display
The OptiCORE EQT1-5 displays are rugged, industrial grade interfaces providing technicians with easy access to the equipment status, parameter values, schedules, alarms, and trends.
Designed for panel or wall mounting, they can load existing Equipment Touch files or new Custom Touch files built in ViewBuilder. The displays offer a contemporary design and a wide temperature range and vibration resistance.
The user interface features are simple to operate for end users, but powerful enough to provide technicians a complete interface for maintaining equipment.
Application Features
- Draw occupants attention to important information with conditional alarming, color changes, and graphics
- Features a high resolution, capacitive multi-touch screen
- Support for 13 international languages and characters
- Can serve as a technician’s HVAC equipment interface
- Multi-level password protection for security
- Access virtually any point in the controller
- View and edit BACnet time schedules
- View all alarms in controller
- Change setpoints easily
- View trending of values
Hardware Features
- 5” Color Touchscreen
- Rugged, industrial grade display including a wide temperature range and vibration resistance
- Fanless cooling system and ultra- low power consumption
- On-board temperature and humidity sensor
- Wall-mounted
Programming Features
- Easily programmable using ViewBuilder WYSIWYG editor, which includes a library of interactive controls
- Supports standard Equipment Touch files
- Support for graphics
- USB-C port for local device updates
- Supports screen capture to USB flash drive
- Built-in PDF viewer
