ZS Duct Sensors
The OEMCtrl® line of ZS sensors communicates on Rnet, the dedicated sensor network. This reduces the number of inputs needed on the controller and provides the added benefit of simplifying I/O wiring by allowing for daisy-chaining of sensors on the Rnet. All duct units feature closed cell foam to seal the insertion hole and absorb vibration, and are built to withstand high humidity and condensation environments. The mounting tabs allow for easy installation to the wall of the duct.
ZS Duct Sensors
Communication
- Baud Rate: 115 kbps Rnet connection between sensor(s) and controller
- 15 sensors max per controller
- 5 sensors max per control program
Part Available

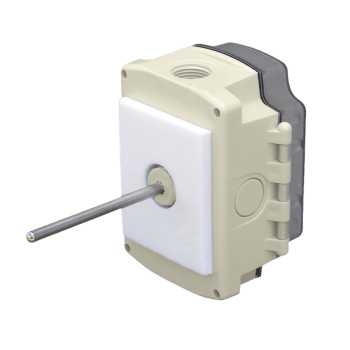

- PZS Duct, Temp Only, 4 inch probe

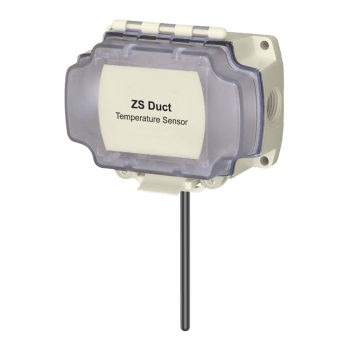

- ZS Duct, Temp Only, 8 inch probe

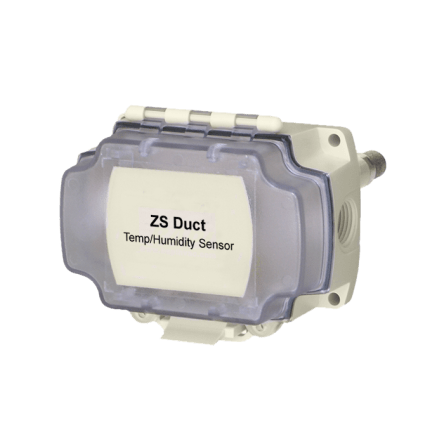

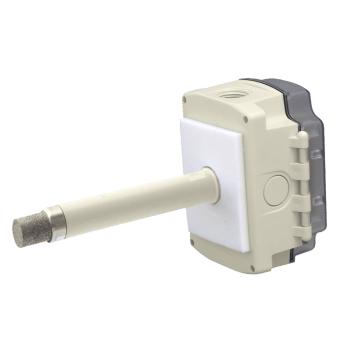

- ZS Duct, Temp + Humidity
- ZS Averaging, 8 inch probe
- ZS Averaging, 12 inch probe
- MZS Averaging, 24 inch probe
- Baud Rate: 115 kbps Rnet connection between sensor(s) and controller
- 15 sensors max per controller
- 5 sensors max per control program
- PZS Duct, Temp Only, 4 inch probe
- ZS Duct, Temp Only, 8 inch probe
- ZS Duct, Temp + Humidity
- ZS Averaging, 8 inch probe
- ZS Averaging, 12 inch probe
- MZS Averaging, 24 inch probe
