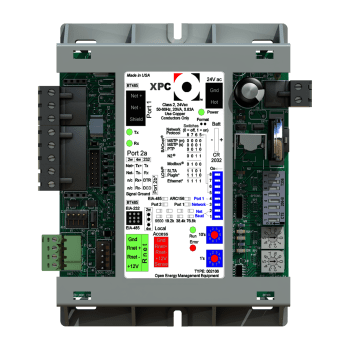

XPC (Extended Protocol Converter)

The XPC sets a new standard for multi-equipment protocol conversion. It can convert between two open protocols for instance from Modbus to BACnet, or from a proprietary protocol to an open protocol, to allow for integration with virtually any Building Automation System. One of the unique things about the XPC is the ability to select the open protocol you want to use with the simple flip of a DIP switch. Choose from BACnet, Modbus, N2, or LonWorks. The XPC also offers the ability to plug in an optional backlit LCD display/keypad to allow you to view any of the points in your system. All of this is offered at a price that won't break the bank.

Protocol Solutions

Need to convert between two open protocols such as Modbus to BACnet, or from a proprietary protocol to an open protocol, so that your product is integration-ready for virtually any Building Automation System? OEMCtrl has three distinct products to server this need.

Key Features
  • Built-in protocol support:
    • BACnet (ARC156, MS/TP, and PTP)
    • Modbus (RTU and ASCII)
    • N2
    • LonWorks optional plug-in communications boards
  • Other Features
  • Three communication ports
  • Translate up to 300 multi-protocol objects from a single piece of equipment
  • DIP switch configuration and selection of the built-in protocols
  • Can accept a manufacturer's (OEM's) proprietary protocol
  • Custom-programmable using our powerful Eikon® graphic programming tool, enabling you to create graphic logic sequences for your application
  • Built-in support for OEMCtrl's custom configurable keypad/display unit.
  • Supports direct, modem access for remote diagnostics and configuration
Accessories
  • Sensors
  • User Interfaces
Applications
  • Equipment with a need for Protocol Conversion

Need to convert between two open protocols such as Modbus to BACnet, or from a proprietary protocol to an open protocol, so that your product is integration-ready for virtually any Building Automation System? OEMCtrl has three distinct products to server this need.

  • Built-in protocol support:
    • BACnet (ARC156, MS/TP, and PTP)
    • Modbus (RTU and ASCII)
    • N2
    • LonWorks optional plug-in communications boards
  • Other Features
  • Three communication ports
  • Translate up to 300 multi-protocol objects from a single piece of equipment
  • DIP switch configuration and selection of the built-in protocols
  • Can accept a manufacturer's (OEM's) proprietary protocol
  • Custom-programmable using our powerful Eikon® graphic programming tool, enabling you to create graphic logic sequences for your application
  • Built-in support for OEMCtrl's custom configurable keypad/display unit.
  • Supports direct, modem access for remote diagnostics and configuration
  • Sensors
  • User Interfaces
  • Equipment with a need for Protocol Conversion
