Smart Valves and Smart Damper Actuators

OEM’s smart valves and damper actuators integrate seamlessly with the controller’s Act Net port. Act Net provides easy addressing for quick startup and installation times while saving onboard I/O. Smart valves feature CCV™ (Characterized Control Valves) technology ensuring precise flow and energy efficiency across various temperatures. Smart damper actuators use Multi-Function Technology (MFT) for precise damper control and efficiency.

file_download CUT SHEET
Key Features & Benefits
  • Smart devices support serial communications for precise valve / damper position management without consuming physical I/O on the controller
  • Connect up to 8 smart devices directly to the actuator sub-network (Act Net) bus on any OptiCore OEM controller, reducing wiring complexity and installation time
  • Exact position feedback provided to the WebCTRL system for diagnostic purposes
  • Act Net Auto-address configuration provides quick installation
  • Smart Valve Selector Tool allows for faster product selection
  • Ideal for AHUs, heating and cooling coils, FCUs, unit ventilators and VAV re-heat coils
  • Supports analog (2-10V) connections

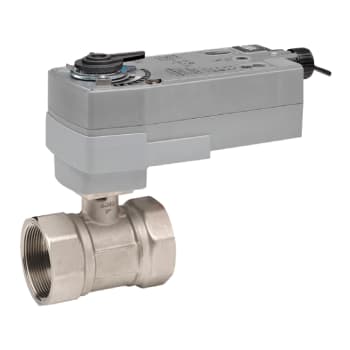

Smart Valves
  • 2-way or 3-way valve and actuator combination options
  • Product ranges from 1/2” to 6” (15 mm to 150 mm) nominal valve sizes
  • Fail-Safe (NO/NC) and Non-Fail-Safe (NO, fail open/NO, fail closed and NC, fail open/NC, fail closed) rotary actuator types
  • Multiple CV product options
  • NPT connections on 1/2” to 3” (15 mm to 180 mm) valve sizes, ANSI 125, 250 flanges on 4” to 6” (100 mm to 150 mm) valve sizes

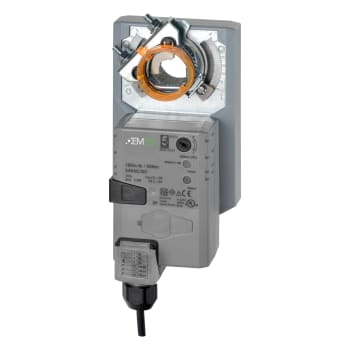

Smart Damper Actuators
  • 35 in-lb to 360 in-lb (4 Nm to 40 Nm) actuator torque ranges1
  • 24 VAC / VDC external power supply
  • Quick running, clear position indication, and manual override

1Depends on actuator size and model
