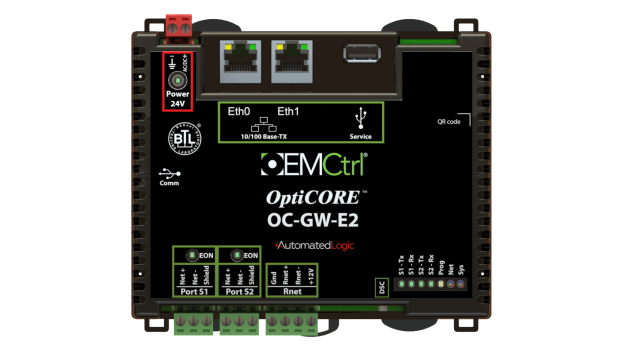

OptiCORE OC-GW-E2

The OptiCore OC-GW-E2 represents the next generation of a building automation system. Functioning as a comprehensive router and gateway, the OC-GW-E2 facilitates the seamless integration of equipment from various manufacturers into a building automation system, employing BACnet and/or Modbus protocols.

file_download Cut Sheet open_in_new BACnet Testing Labratories (BTL Listings)
Link Features
  • BACnet Testing Laboratories (BTL) certified
  • Conforms to BACnet Router (B-RTR), and BACnet BBMD (B-BBMD) standard device profiles
  • Supports BACnet routing between BACnet/IP, BACnet/Ethernet and BACnet/MSTP networks
  • Can serve as the BACnet Broadcast Management Device (BBMD)
  • Supports Modbus RTU and Modbus TCP/IP
  • Supports up to 1,500 third-party BACnet points and up to 1,000 Modbus points (IP or Modbus RTU)
  • Supports BACnet Foreign Device Registration (FDR)
Hardware Features
  • Supports IPv4 networks
  • Two 10/100 Mbps Ethernet Ports with fail-safe relay
  • Two isolated serial ports, supporting speeds from 9.6 to 115.2 Kbps
  • USB 2.0 service port for setting up the gateway and troubleshooting through a local connection to a computer, the OptiCORE ET display, or USB Wireless service adapter
  • Compact footprint simplifies installation and optimizes panel space
System Benefits
  • Connects seamlessly into a building automation system
  • BACnet Testing Laboratories (BTL) certified
  • Conforms to BACnet Router (B-RTR), and BACnet BBMD (B-BBMD) standard device profiles
  • Supports BACnet routing between BACnet/IP, BACnet/Ethernet and BACnet/MSTP networks
  • Can serve as the BACnet Broadcast Management Device (BBMD)
  • Supports Modbus RTU and Modbus TCP/IP
  • Supports up to 1,500 third-party BACnet points and up to 1,000 Modbus points (IP or Modbus RTU)
  • Supports BACnet Foreign Device Registration (FDR)
  • Supports IPv4 networks
  • Two 10/100 Mbps Ethernet Ports with fail-safe relay
  • Two isolated serial ports, supporting speeds from 9.6 to 115.2 Kbps
  • USB 2.0 service port for setting up the gateway and troubleshooting through a local connection to a computer, the OptiCORE ET display, or USB Wireless service adapter
  • Compact footprint simplifies installation and optimizes panel space
  • Connects seamlessly into a building automation system
