LS-XP EXPANDERS

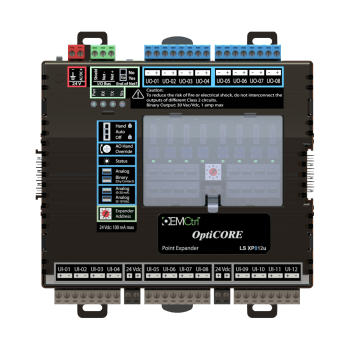

The OEMCtrl OptiCORE LS-XP expanders are capable of controlling HVAC equipment with high I/O point counts (up to 224) through expandable I/O boards. The OptiCORE I/O expanders deliver input and output capacity to the powerful OptiCORE LS line of controllers. Up to nine OptiCORE I/O expanders can be added to an OptiCORE LS controller. OptiCORE I/O expanders are designed for flexible panel configurations. They are DIN rail or screw-tab mountable and can be mixed and matched to meet the I/O requirements of the equipment being controlled. The expanders can be mounted directly to the LS controller or remotely mounted up to 500’ away.

file_download CUT SHEET
I/O Features
  • Inputs:
    • LS-XP48u: 8 inputs
    • LS-XP812u: 12 inputs
    • LS-XP012u: 12 inputs
  • Outputs:
    • LS-XP48u: 4 outputs
    • LS-XP812u: 8 outputs
    • Removable screw terminals for I/O connections
    • Hand-Auto-Off switches on all output channels
    • Color-coated I/O and easy to read labeling minimizes wiring errors
    • Support for up to 9 I/O expanders (224 total points with the OptiCORE LS-1628u)
Hardware Features
  • LEDs for each output for easy identification of output status whether configured as an AO or DO
  • LEDs for status indicators for Power, Run, Error, Xnet TX and Xnet Rx
  • Backplane mounting via srew tab or DIN rail mounting
Communication Features
  • IO Bus port: Provides up to 2000 ft (610 m) communication for wired remote LS-XP expanders that are powered by external power supplies
  • IO Bus edge connector: 6-pin connector that provides communication and power
  • Inputs:
    • LS-XP48u: 8 inputs
    • LS-XP812u: 12 inputs
    • LS-XP012u: 12 inputs
  • Outputs:
    • LS-XP48u: 4 outputs
    • LS-XP812u: 8 outputs
    • Removable screw terminals for I/O connections
    • Hand-Auto-Off switches on all output channels
    • Color-coated I/O and easy to read labeling minimizes wiring errors
    • Support for up to 9 I/O expanders (224 total points with the OptiCORE LS-1628u)
  • LEDs for each output for easy identification of output status whether configured as an AO or DO
  • LEDs for status indicators for Power, Run, Error, Xnet TX and Xnet Rx
  • Backplane mounting via srew tab or DIN rail mounting
  • IO Bus port: Provides up to 2000 ft (610 m) communication for wired remote LS-XP expanders that are powered by external power supplies
  • IO Bus edge connector: 6-pin connector that provides communication and power
